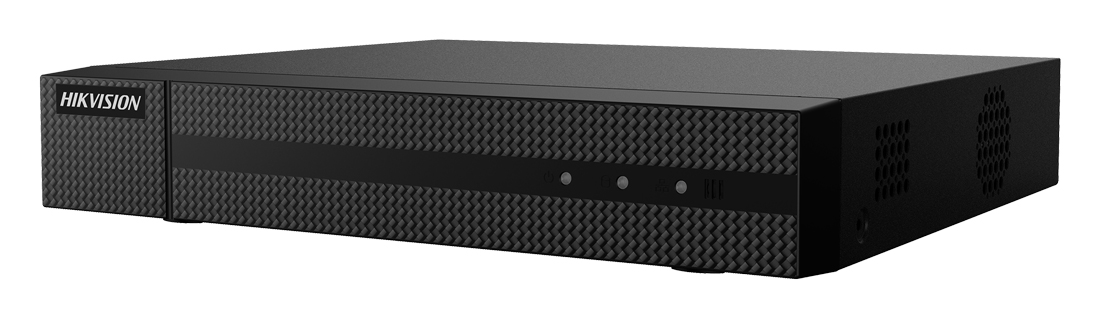

HIKVISION HIWATCH DVR καταγραφικό HWD-6104MH-G3, H.265+, 4 κανάλια

HIKVISION HIWATCH DVR καταγραφικό HWD-6104MH-G3, H.265+, 4 κανάλια

Υβριδικό DVR καταγραφικό 5 σε 1 (HDTV, AHD, CVI, CVBS, IP video input) της σειράς HiWatch από την HIKVISION. Υποστηρίζει έως και 4 αναλογικά κανάλια ή 6 κανάλια IP, κωδικοποίηση βίντεο H.265+ και HDD έως 10ΤΒ.

-H.265 Pro+/H.265 Pro/H.265 video compression
-HDTVI/AHD/CVI/CVBS/IP video input
-Audio via coaxial cable
-Up to 4-ch analog video input or 6-ch IP camera input
-Full channel recording at up to 4MP lite resolution
-Max. 800 m for 1080p and 1200 m for 720p HDTVI signal
-Up to 10 TB capacity per HDD
-Support Turbo HD video input
-Two-way audio
-HDMI & VGA output
-Multi-channel synchronous playback
-High definition real-time recording
-Live view from smart device or Internet
-Easy smart search for motion event during playback
-Hik-connect P2P function for easy remote management

Τεχνικά χαρακτηριστικά
Video compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution:
-When 4MP Lite mode not enabled: 4MP/4MP Lite/1080p/720p/WD1/4CIF/VGA/CIF
-When 4MP Lite mode enabled: 4MP Lite/1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
-When 1080p Lite mode is not enabled: 4MP/1080p/720p/WD1/4CIF/VGA/CIF
-When 1080p Lite mode is enabled: 4MP/1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
Frame rate:
-For 720p stream access: 720p/VGA/WD1/4CIF/CIF @25fps (P)/30 fps (N)
-When MP Lite mode not enable: For 4MP stream access: 4MP @8fps, 4MP lite/1080p/720p/WD1/4CIF/VGA/CIF@ 15fps (N)
-When 4MP Lite mode enabled: For 4MP stream access: 4MP lite @15fps, 1080p Lite/720p Lite/VGA/WD1/4CIF/CIF @25fps (P)/30fps (N)
-When 1080p Lite mode not enabled: For 1080p stream access: 1080p/720p @15fps, VGA/WD1/4CIF/CIF @25fps (P)/30fps (N)
-When 1080p Lite mode enabled: For 1080p stream access: 1080p lite/720p lite/VGA/WD1/4CIF/CIF@ 25fps (P)/30fps (N)
-Sub-stream: WD1/4CIF/2CIF @12fps, CIF/QVGA/QCIF @25fps (P)/30fps (N)
Video bit rate: 32 Kbps to 6 Mbps
Dual stream: Support
Stream type: Video, Video & Audio
Audio compression: G.711u
Audio bit rate: 64 Kbps
IP video input: 2-ch (up to 6-ch), Up to 6 MP resolution, Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input: 4-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input: 4MP, 1080p/25fps, 1080p/30fps, 720p/25fps, 720p/30fps
AHD input: 4MP, 1080p/25fps, 1080p/30fps, 720p/25fps, 720p/30fps
HDCVI input: 4MP, 1080p/25fps, 1080p/30fps, 720p/25fps, 720p30fps
CVBS input: Support
VGA output: 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
HDMI output: 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Audio input: 1-ch, RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable
Audio output: 1-ch, RCA (Linear, 1 KΩ)
Two-way audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
Synchronous playback: 4-ch
Remote connection: 32-ch
Network protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
SATA: 1 SATA interface
Capacity: Up to 10 TB capacity for each disk
USB interface: Real panel: 2x USB 2.0
Power supply: 12 VDC, 1.5 A
Consumption (without HDD): Up to 8 W
Working temperature: -10°C to 55°C
Working humidity: 10% to 90%
Dimension (W x D x H): 260 x 222 x 45 mm

Περιεχόμενα συσκευασίας
DVR καταγραφικό
Ενσύρματο ποντίκι
Αντάπτορας τροφοδοσίας
Καλώδια σύνδεσης
Βίδες
Εγχειρίδιο χρήσης
